VERTICAL COMPACTOR

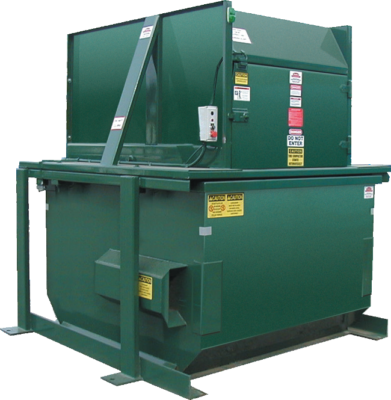

Vertical Compactor

6 Yard Shown

FEATURING:
  • Extra Low Feed heights
  • Reversible: Use for Front or Rear Feed Applications
  • Available in 6 or 8 Cubic Yard Capacities
  • Rugged Anchoring Platform
  • Unit Cycles Automatically when Door is Closed
  • Large Opening
  • Clean and Aesthetic Application
Compactor Vertical Wire Frontal
Compactor Vertical Wire Profile

Specifications

CHARGE BOX CAPACITY AND DIMENSIONS
  • 6 & 8 CUBIC YARD CAPACITY
  • FEED HEIGHT – 55-1/2” (6YD.) – 71” (8 YD.)
  • MANUFACTURERS RATING – .68 CU. YD.
  • WASTE RATING -.68 CU YD.
  • HOPPER WIDTH – 48”
  • HOPPER HEIGHT – 27-1/2”
  • HOPPER DEPTH – 37”
  • RAM PENETRATION – 17”
RAM DETAILS
  • 3/16” RAM FACE PLATE W/ 5” X 3” X 1/2” ANGLE
  • RAM FACE 1767 SQ IN.
  • 3/16” RAM SIDES
  • 1-1/4” W/ GREASABLE PIVOT SHAFT
PACKER FABRICATION DETAILS
  • 10 GA. HOUSING BOTTOM
  • 11 GA. HOUSING SIDE W/ 6” X 2” X 3/16” SIDE STIFFENER
  • 6” X 2” X 1/4” BREAKER BAR
  • 6” REAR MOUNT BEAM
  • 6” X 2” X 3/16” SUPPORT LEGS
  • 4” ANGLE CONTAINER GUIDES W/ LOCK
INTERNAL POWER UNIT – ELECTRICAL AND HYDRAULIC DETAILS
  • 3 HP MOTOR TEFC 208/230/460, 3 PHASE
  • NEMA 12 CONTROL PANEL, UL RATED
  • 4.3 GPM PUMP CAPACITY
  • 7 GALLON HYDRAULIC OIL TANK W/ SITE GAUGE
  • SINGLE CYLINDER SYSTEM
  • 4” BORE X 2” ROD @ 16” STROKE
  • NORMAL PRESSURE – 2250
  • MAXIMUM PRESSURE – 2500
  • NORMAL RAM FORCE – 28,260
  • MAXIMUM RAM FORCE – 31,400
  • NORMAL RAM FORCE PSI – 16.0
  • MAXIMUM RAM FORCE PSI 17.77
  • CYCLE TIME IN SECONDS – 20
  • CUBIC YARDS PER HOUR – 76
OPERATION DETAILS
  • PUSH BUTTON STARTER, AUTOMATIC CYCLE
  • 100% FULL LIGHT
  • TURN KEY SWITCH MOUNTED BY DOOR
  • DRIVER’S LIGHT REMOVABLE FOR MULTI POSITIONS
  • RAM RETRACTS, EXTENDS, RETRACTS & STOPS AUTOMATICALLY
  • DOOR W/ SAFETY INTERLOCK
OPTIONAL EQUIPMENT
  • SINGLE PHASE, 3 HP, 220 VOLT, 2.5 GPM PUMP
  • CHUTE KIT
  • 5 HP MOTOR TEFC 208/230/460, 3 PHASE
  • DEODORIZER/SPRAY CAN ON TIMER
  • OIL HEATER
  • PRESSURE GAUGE MOUNTED BY DOOR
  • STEEL PLATFORM
  • 80% FULL LIGHT
