COMPACTORS

STATIONARY COMPACTOR

RP-200 THRU RP-400
stationaryCompactor

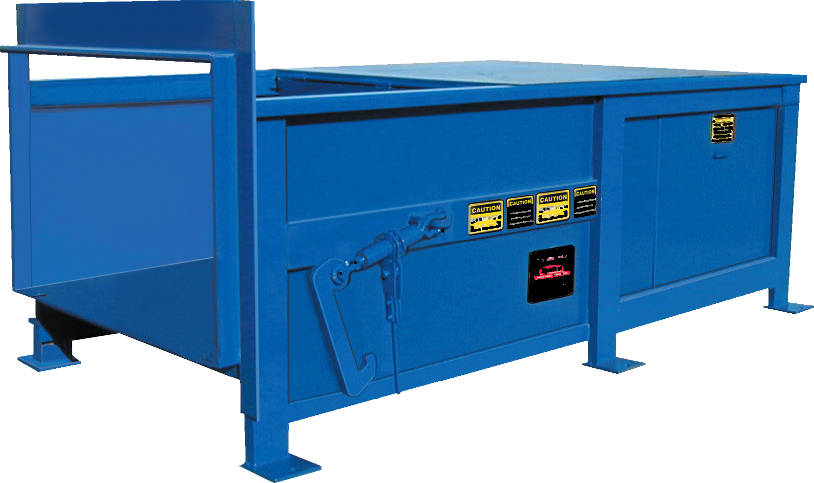

RP-300 SHOWN

FEATURING:
  • UL Listed Relay Control Box
  • Electrical Motor – TEFC (Tri-Voltage)
  • Meets ANSI Standards
  • Controls: Push button start, dead man/hand key switch, forward-reverse selection switch, mushroom emergency stop, 80% / 100% container full light and manual override all standard
  • Grease Fittings (2 per side)
  • All compactors are primed and painted in one of ten standard colors
  • Oil Level Site Gauge with Thermometer
  • Operator Controls with 15’ Sealtite
  • Hydraulic Power Unit mounted internally (RP-200 and RP-300 Only)
  • Options Available
stationaryCompactorProfile
stationaryCompactorFrontal

Specifications

Compenent
RP-200

MFG. RATING
2.0 CUBIC YARDS

NSWMA RATING
1.56 CUBIC YARDS

CYCLE TIME
63 SEC.

NORMAL RAM FORCE
48,000

MAXIMUM RAM FORCE
56,500

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
6” x 56” x 3”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
1/2” PLATE

PACKER SIDES
1/4” PLATE w/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE w/ 4” x 3” ANGLE

CHARGE BOX OPENING
40” x 60”

DIMENSION - A
49-7/8”

DIMENSION - B
123-1/2”

DIMENSION - C
12-1/2”

DIMENSION - D
62-3/8”

DIMENSION - E
30-1/2”

DIMENSION - F
76-1/2”

DIMENSION - G
68”

DIMENSION - H
80-1/4”

DIMENSION - J
131”

DIMENSION - K
41”

DIMENSION - L
60”

DIMENSION - M
67-1/2”

APPROXIMATE WEIGHT
5,830
Compenent
RP-300

MFG. RATING
3.0 CUBIC YARDS

NSWMA RATING
2.05 CUBIC YARDS

CYCLE TIME
57 SEC.

NORMAL RAM FORCE
48,042

MAXIMUM RAM FORCE
56,520

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
6” x 66” x 3”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
1/2” PLATE

PACKER SIDES
1/4” PLATE w/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE w/ 4” x 3” ANGLE

CHARGE BOX OPENING
50” x 60”

DIMENSION - A
49-7/8”

DIMENSION - B
141-1/2”

DIMENSION - C
12-1/2”

DIMENSION - D
62-3/8”

DIMENSION - E
30-1/2”

DIMENSION - F
76-1/2”

DIMENSION - G
68”

DIMENSION - H
88-1/4”

DIMENSION - J
149”

DIMENSION - K
51”

DIMENSION - L
60”

DIMENSION - M
67-1/2”

APPROXIMATE WEIGHT
6,130
Compenent
RP-400

MFG. RATING
3.44 CUBIC YARDS

NSWMA RATING
2.97 CUBIC YARDS

CYCLE TIME
54 SEC.

NORMAL RAM FORCE
52,200

MAXIMUM RAM FORCE
61,400

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
6” X 80” X 4-1/2”

MOTOR
15 HP

PUMP SIZE
15 GPM

PACKER FLOOR
1/2” PLATE

PACKER SIDES
1/4” PLATE w/4”x 3” ANGLE

RAM TOP
1/4” PLATE

RAM FACE
1/2” PLATE w/ 4” x 3” ANGLE

CHARGE BOX OPENING
60” x 69”

DIMENSION - A
54-1/2”

DIMENSION - B
182”

DIMENSION - C
8”

DIMENSION - D
62-3/8”

DIMENSION - E
31”

DIMENSION - F
76-1/2”

DIMENSION - G
68”

DIMENSION - H
112”

DIMENSION - J
189”

DIMENSION - K
69-1/2”

DIMENSION - L
60”

DIMENSION - M
67-1/2”

APPROXIMATE WEIGHT
8,400
