COMPACTORS

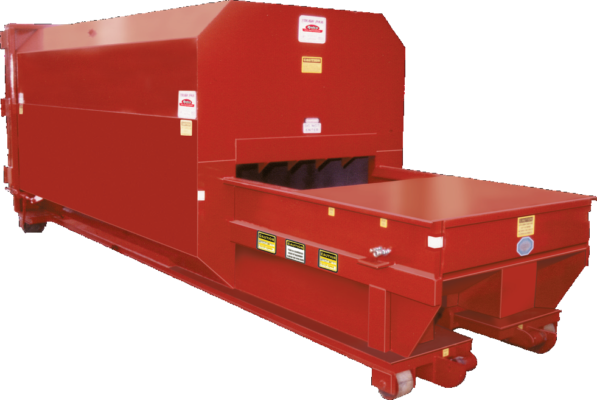

SELF-CONTAINED COMPACTOR

selfContainedCompactor

RP-3500
(Shown)

Available in 10. 15, 20, 30, 35 and 40 cubic yard capacities and range from 14.0 to 25.5 foot lengths. Ideal for food handling companies, processing plants, supermarkets,

fast food restaurants, hotels, casinos, and hospitals.

FEATURING:
  • Meets ANSI Standards
  • Remote Power Units with Cover
  • UL Listed Relay Control Box
  • Quick Disconnect with Drip Pan
  • Two 3” Fire Ports
  • Operator’s Controls with 15’ Sealite
  • Oil Level Sight Gauge with Thermometer
  • Double End Pick-Up
  • TEFC Motors (Tri-Voltage)
  • Easy closing semi-automatic slam lock door (standard)
  • Two 2” x 4” x ¼” vertical tubings welded inside to the face of the container to give it greater strength and longevity (standard)
  • All compactors are primed and painted in one of ten standard colors
  • Two grease fittings located on each side of charge box for preventative maintenance (standard)
  • Controls: push button start, dead man/hand key switch, forward-reverse selection switch, mushroom emergency stop and 80% and 100%
selfContainedCompactorWireFrontal

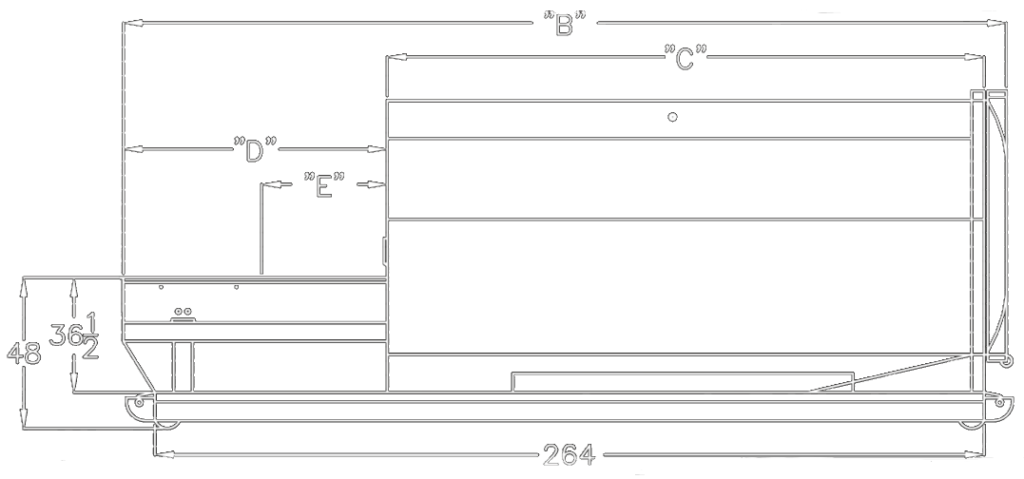

selfContainedCompactorWireProfile

Specifications

Compenent
RT-1000

CHARGE BOX CAP. - MFG. RATING
1.0 CUBIC YARDS

NSWMA RATING
.74 CUBIC YARDS

CYCLE TIME
28 SEC.

NORMAL RAM FORCE
21,400

MAXIMUM RAM FORCE
25,100

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
4”X31-5/8” X 2-1/2”

MOTOR
5 HP

PUMP SIZE
6.5 GPM

PACKER FLOOR
3/8” PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/ 4”X 3” ANGLE

CHARGE BOX OPENING
26” X 43”

DIMENSION - A
100”

DIMENSION - B
169”

DIMENSION - C
72”

DIMENSION - D
70”

DIMENSION - E
26”

WEIGHT
4,875
Compenent
RT-1500

CHARGE BOX CAP. - MFG. RATING
1.0 CUBIC YARDS

NSWMA RATING
.74 CUBIC YARDS

CYCLE TIME
28 SEC.

NORMAL RAM FORCE
21,400

MAXIMUM RAM FORCE
25,100

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
4”X31”-5/8” X 2-1/2”

MOTOR
5 HP

PUMP SIZE
6.5 GPM

PACKER FLOOR
3/8’ PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/ 4”X 3” ANGLE

CHARGE BOX OPENING
26” X 43”

DIMENSION - A
100”

DIMENSION - B
192”

DIMENSION - C
95”

DIMENSION - D
70”

DIMENSION - E
26”

WEIGHT
7,300
Compenent
RT-2000

CHARGE BOX CAP. - MFG. RATING
2.0 CUBIC YARDS

NSWMA RATING
1.42 CUBIC YARDS

CYCLE TIME
30 sec.

NORMAL RAM FORCE
40,231

MAXIMUM RAM FORCE
45,100

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2300

CYLINDER (BORE x STROKE X ROD)
5”x42”x3”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
3/8” PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/4”x3” ANGLE

CHARGE BOX OPENING
36” X 60”

DIMENSION - A
108”

DIMENSION - B
223”

DIMENSION - C
126”

DIMENSION - D
88”

DIMENSION - E
36”

WEIGHT
8,900
Compenent
RT-3000

CHARGE BOX CAP. - MFG. RATING
2.0 CUBIC YARDS

NSWMA RATING
1.42 CUBIC YARDS

CYCLE TIME
30 SEC.

NORMAL RAM FORCE
40,231

MAXIMUM RAM FORCE
45,100

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2300

CYLINDER (BORE x STROKE X ROD)
5”X42”X3”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
3/8” PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/4”X3” ANGLE

CHARGE BOX OPENING
40” X 60”

DIMENSION - A
108”

DIMENSION - B
281”

DIMENSION - C
186”

DIMENSION - D
88”

DIMENSION - E
36”

WEIGHT
10,100
Compenent
RP-2000

CHARGE BOX CAP. - MFG. RATING
2.0 CUBIC YARDS

NSWMA RATING
1.54 CUBIC YARDS

CYCLE TIME
30 SEC.

NORMAL RAM FORCE
39,900

MAXIMUM RAM FORCE
43,500

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
(2) 4”X31-5/8 X -1/2”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
3/8” PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/4”X3” ANGLE

CHARGE BOX OPENING
40” X 60”

DIMENSION - A
100”

DIMENSION - B
221”

DIMENSION - C
130”

DIMENSION - D
84”

DIMENSION - E
40”

WEIGHT
9,000
Compenent
RP-3000

CHARGE BOX CAP. - MFG. RATING
2.0 CUBIC YARDS

NSWMA RATING
1.54 CUBIC YARDS

CYCLE TIME
30 SEC.

NORMAL RAM FORCE
39,900

MAXIMUM RAM FORCE
43,500

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
(2) 4”X31-5/8X-1/2”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
3/8” PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/4”X3” ANGLE

CHARGE BOX OPENING
40” X 60”

DIMENSION - A
100”

DIMENSION - B
281”

DIMENSION - C
190”

DIMENSION - D
84”

DIMENSION - E
40”

WEIGHT
10,250
Compenent
RP-3500

CHARGE BOX CAP. - MFG. RATING
2.0 CUBIC YARDS

NSWMA RATING
1.54 CUBIC YARDS

CYCLE TIME
30 SEC.

NORMAL RAM FORCE
39,900

MAXIMUM RAM FORCE
43,500

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
(2) 4”X31-5/8X-1/2”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
3/8” PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/4”X3” ANGLE

CHARGE BOX OPENING
40” X 60”

DIMENSION - A
108”

DIMENSION - B
281”

DIMENSION - C
190”

DIMENSION - D
84”

DIMENSION - E
40”

WEIGHT
10,300
Compenent
RP-4000

CHARGE BOX CAP. - MFG. RATING
2.0 CUBIC YARDS

NSWMA RATING
1.54 CUBIC YARDS

CYCLE TIME
30 SEC.

NORMAL RAM FORCE
39,900

MAXIMUM RAM FORCE
43,500

NORMAL OPERATING PRESSURE
1700

MAXIMUM OPERATING PRESSURE
2000

CYLINDER (BORE x STROKE X ROD)
(2) 4”X31-5/8X-1/2”

MOTOR
10 HP

PUMP SIZE
10.5 GPM

PACKER FLOOR
3/8” PLATE

PACKER SIZES
1/4” PLATE W/ 6” CHANNEL

RAM TOP
1/4” PLATE

RAM FACE
3/8” PLATE W/4”X3” ANGLE

CHARGE BOX OPENING
40” X 60”

DIMENSION - A
108”

DIMENSION - B
305”

DIMENSION - C
214”

DIMENSION - D
84”

DIMENSION - E
40”

WEIGHT
10,800

Specifications

  • RT-1000
    Compenent
    RT-1000

    CHARGE BOX CAP. - MFG. RATING
    1.0 CUBIC YARDS

    NSWMA RATING
    .74 CUBIC YARDS

    CYCLE TIME
    28 SEC.

    NORMAL RAM FORCE
    21,400

    MAXIMUM RAM FORCE
    25,100

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2000

    CYLINDER (BORE x STROKE X ROD)
    4”X31-5/8” X 2-1/2”

    MOTOR
    5 HP

    PUMP SIZE
    6.5 GPM

    PACKER FLOOR
    3/8” PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/ 4”X 3” ANGLE

    CHARGE BOX OPENING
    26” X 43”

    DIMENSION - A
    100”

    DIMENSION - B
    169”

    DIMENSION - C
    72”

    DIMENSION - D
    70”

    DIMENSION - E
    26”

    WEIGHT
    4,875
  • RT-1500
    Compenent
    RT-1500

    CHARGE BOX CAP. - MFG. RATING
    1.0 CUBIC YARDS

    NSWMA RATING
    .74 CUBIC YARDS

    CYCLE TIME
    28 SEC.

    NORMAL RAM FORCE
    21,400

    MAXIMUM RAM FORCE
    25,100

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2000

    CYLINDER (BORE x STROKE X ROD)
    4”X31”-5/8” X 2-1/2”

    MOTOR
    5 HP

    PUMP SIZE
    6.5 GPM

    PACKER FLOOR
    3/8’ PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/ 4”X 3” ANGLE

    CHARGE BOX OPENING
    26” X 43”

    DIMENSION - A
    100”

    DIMENSION - B
    192”

    DIMENSION - C
    95”

    DIMENSION - D
    70”

    DIMENSION - E
    26”

    WEIGHT
    7,300
  • RT-2000
    Compenent
    RT-2000

    CHARGE BOX CAP. - MFG. RATING
    2.0 CUBIC YARDS

    NSWMA RATING
    1.42 CUBIC YARDS

    CYCLE TIME
    30 sec.

    NORMAL RAM FORCE
    40,231

    MAXIMUM RAM FORCE
    45,100

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2300

    CYLINDER (BORE x STROKE X ROD)
    5”x42”x3”

    MOTOR
    10 HP

    PUMP SIZE
    10.5 GPM

    PACKER FLOOR
    3/8” PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/4”x3” ANGLE

    CHARGE BOX OPENING
    36” X 60”

    DIMENSION - A
    108”

    DIMENSION - B
    223”

    DIMENSION - C
    126”

    DIMENSION - D
    88”

    DIMENSION - E
    36”

    WEIGHT
    8,900
  • RT-3000
    Compenent
    RT-3000

    CHARGE BOX CAP. - MFG. RATING
    2.0 CUBIC YARDS

    NSWMA RATING
    1.42 CUBIC YARDS

    CYCLE TIME
    30 SEC.

    NORMAL RAM FORCE
    40,231

    MAXIMUM RAM FORCE
    45,100

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2300

    CYLINDER (BORE x STROKE X ROD)
    5”X42”X3”

    MOTOR
    10 HP

    PUMP SIZE
    10.5 GPM

    PACKER FLOOR
    3/8” PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/4”X3” ANGLE

    CHARGE BOX OPENING
    40” X 60”

    DIMENSION - A
    108”

    DIMENSION - B
    281”

    DIMENSION - C
    186”

    DIMENSION - D
    88”

    DIMENSION - E
    36”

    WEIGHT
    10,100
  • RP-2000
    Compenent
    RP-2000

    CHARGE BOX CAP. - MFG. RATING
    2.0 CUBIC YARDS

    NSWMA RATING
    1.54 CUBIC YARDS

    CYCLE TIME
    30 SEC.

    NORMAL RAM FORCE
    39,900

    MAXIMUM RAM FORCE
    43,500

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2000

    CYLINDER (BORE x STROKE X ROD)
    (2) 4”X31-5/8 X -1/2”

    MOTOR
    10 HP

    PUMP SIZE
    10.5 GPM

    PACKER FLOOR
    3/8” PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/4”X3” ANGLE

    CHARGE BOX OPENING
    40” X 60”

    DIMENSION - A
    100”

    DIMENSION - B
    221”

    DIMENSION - C
    130”

    DIMENSION - D
    84”

    DIMENSION - E
    40”

    WEIGHT
    9,000
  • RP-3000
    Compenent
    RP-3000

    CHARGE BOX CAP. - MFG. RATING
    2.0 CUBIC YARDS

    NSWMA RATING
    1.54 CUBIC YARDS

    CYCLE TIME
    30 SEC.

    NORMAL RAM FORCE
    39,900

    MAXIMUM RAM FORCE
    43,500

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2000

    CYLINDER (BORE x STROKE X ROD)
    (2) 4”X31-5/8X-1/2”

    MOTOR
    10 HP

    PUMP SIZE
    10.5 GPM

    PACKER FLOOR
    3/8” PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/4”X3” ANGLE

    CHARGE BOX OPENING
    40” X 60”

    DIMENSION - A
    100”

    DIMENSION - B
    281”

    DIMENSION - C
    190”

    DIMENSION - D
    84”

    DIMENSION - E
    40”

    WEIGHT
    10,250
  • RP-3500
    Compenent
    RP-3500

    CHARGE BOX CAP. - MFG. RATING
    2.0 CUBIC YARDS

    NSWMA RATING
    1.54 CUBIC YARDS

    CYCLE TIME
    30 SEC.

    NORMAL RAM FORCE
    39,900

    MAXIMUM RAM FORCE
    43,500

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2000

    CYLINDER (BORE x STROKE X ROD)
    (2) 4”X31-5/8X-1/2”

    MOTOR
    10 HP

    PUMP SIZE
    10.5 GPM

    PACKER FLOOR
    3/8” PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/4”X3” ANGLE

    CHARGE BOX OPENING
    40” X 60”

    DIMENSION - A
    108”

    DIMENSION - B
    281”

    DIMENSION - C
    190”

    DIMENSION - D
    84”

    DIMENSION - E
    40”

    WEIGHT
    10,300
  • RP-4000
    Compenent
    RP-4000

    CHARGE BOX CAP. - MFG. RATING
    2.0 CUBIC YARDS

    NSWMA RATING
    1.54 CUBIC YARDS

    CYCLE TIME
    30 SEC.

    NORMAL RAM FORCE
    39,900

    MAXIMUM RAM FORCE
    43,500

    NORMAL OPERATING PRESSURE
    1700

    MAXIMUM OPERATING PRESSURE
    2000

    CYLINDER (BORE x STROKE X ROD)
    (2) 4”X31-5/8X-1/2”

    MOTOR
    10 HP

    PUMP SIZE
    10.5 GPM

    PACKER FLOOR
    3/8” PLATE

    PACKER SIZES
    1/4” PLATE W/ 6” CHANNEL

    RAM TOP
    1/4” PLATE

    RAM FACE
    3/8” PLATE W/4”X3” ANGLE

    CHARGE BOX OPENING
    40” X 60”

    DIMENSION - A
    108”

    DIMENSION - B
    305”

    DIMENSION - C
    214”

    DIMENSION - D
    84”

    DIMENSION - E
    40”

    WEIGHT
    10,800

AVAILABLE OPTIONS:

  • Guide Rail
  • Doghouse W/ 30”x40” Door On Each Side
  • Hopper 45° (Cellar Type) With Doors
  • Thru-Wall Chute Side 40”H x 96”L W/ Door (40” x 40” Free Standing Chute)
  • Thru-Wall Chute Rear 40H x 96”L With Door (40” x 40” Free Standing Chute)
  • Hinged Dock Extension
  • Single Phase Power Unit
  • Multi Cycle Timer
  • Color Pressure Gauge
  • Oil Heater
  • Ozone Odor Control System
  • Additional Options Available
