HOISTS

ROLL-OFF HOIST

(INSIDE-OUTSIDE RAIL OR OUTSIDE RAIL)
Roll-Off-Hoist

50,60 and 75,000 LB.
Capacity Models Available

FEATURING:
  • 52° Dump Angle
  • Single Stage Interchangeable Cylinders for both Lift and Reeving Cylinders
  • 4” x 3” x 1/4” Sub Frame
  • 1/4” Wear Strips (Outside Rail Only) (60,000 & 75,000 lb. Models)
  • Rear Cable Storage Hook
  • Safety Props Both Sides
  • 1/2” Bracket wrapped around roller pins
  • Back-Up Alarm (Self-Adjusting Volume)
  • Folding Bumper With Lock Pins
  • Certified Rear Hold Downs as required by law
OPTIONS
  • Air Shift P.T.O.
  • Full Fenders
  • Tool Box
  • Inside Controls
  • ADDITIONAL OPTIONS AVAILABLE

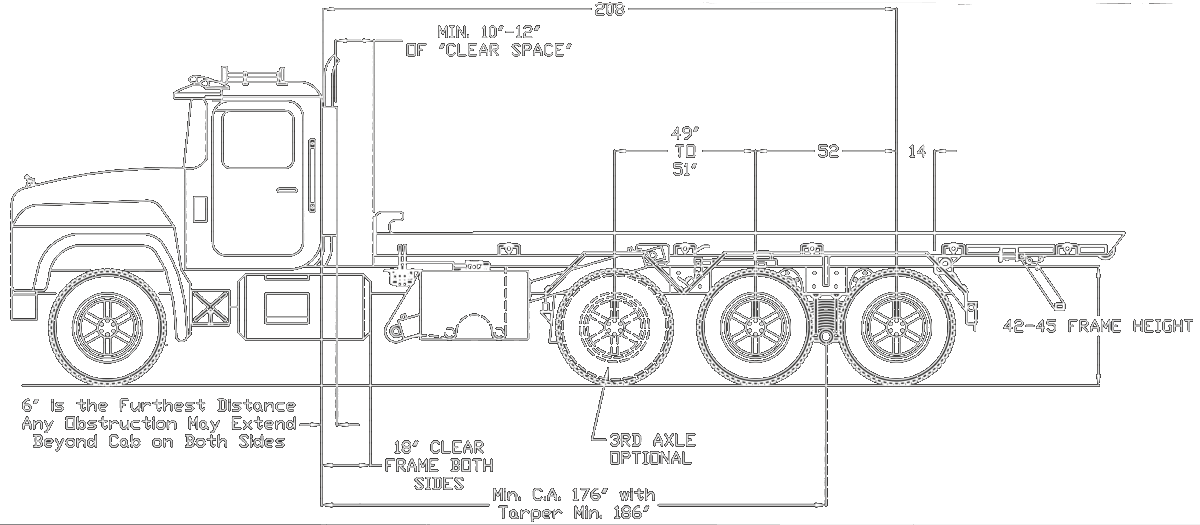

Roll-Off Hoist Profile

Specifications

RATED CAPACITY
50,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
6” X 80” X 4-3/4” D.A.

REEVING CYLINDERS (BORE X STROKE)
6” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
3-1/2” X 80” X 2-1/2” D.A.

CABLE
3-1/2” X 80” X 2-1/2” D.A.

HOIST LENGTH
238” - 318”

CONTAINER LENGTH
12’ - 22’

OPERATING PRESSURE
2150

HOIST UP
25

HOIST DOWN
13

WINCH ON
27

WINCH OFF
20

SUB-FRAME
4” X 3” X 1/4” TUBE

TOP RAIL DIVIDER BAR
N/A

WEIGHT (WITH OIL AND MOUNTED)
9,400
RATED CAPACITY
60,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
6” X 80” X 4-3/4” D.A.

REEVING CYLINDERS (BORE X STROKE)
6” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
N/A

CABLE
7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

HOIST LENGTH
276”

CONTAINER LENGTH
12’ - 24’

OPERATING PRESSURE
2150

HOIST UP
26

HOIST DOWN
17

WINCH ON
26

WINCH OFF
17

SUB-FRAME
4” X 3” X 1/4” TUBE

TOP RAIL DIVIDER BAR
N/A

WEIGHT (WITH OIL AND MOUNTED)
8,000
RATED CAPACITY
60,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
6”, 5”, 4” X 120” D.A.T. TELESCOPIC

REEVING CYLINDERS (BORE X STROKE)
6” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
N/A

CABLE
7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

HOIST LENGTH
286”

CONTAINER LENGTH
12’ - 22’

OPERATING PRESSURE
2150

HOIST UP
29

HOIST DOWN
17

WINCH ON
29

WINCH OFF
17

SUB-FRAME
4” X 3” X 1/4” TUBE

TOP RAIL DIVIDER BAR
N/A

WEIGHT (WITH OIL AND MOUNTED)
8,150
RATED CAPACITY
60,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
6” X 81” X 4-3/4”

REEVING CYLINDERS (BORE X STROKE)
6” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
N/A

CABLE
7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

HOIST LENGTH
276”

CONTAINER LENGTH
12’ - 22’

OPERATING PRESSURE
2150

HOIST UP
26

HOIST DOWN
17

WINCH ON
26

WINCH OFF
17

SUB-FRAME
4” X 3” X 1/4” TUBE

TOP RAIL DIVIDER BAR
3/4” x 2-1/2” ALLOY STEEL

WEIGHT (WITH OIL AND MOUNTED)
8,140
RATED CAPACITY
75,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
7” X 81” X 4-3/4” D.A.

REEVING CYLINDERS (BORE X STROKE)
7” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
N/A

CABLE
7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

HOIST LENGTH
276”

CONTAINER LENGTH
12’ - 22’

OPERATING PRESSURE
2150

HOIST UP
26

HOIST DOWN
21

WINCH ON
26

WINCH OFF
21

SUB-FRAME
4” X 3” X 1/4” TUBE

TOP RAIL DIVIDER BAR
N/A

WEIGHT (WITH OIL AND MOUNTED)
8,140
RATED CAPACITY
75,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
6”,5”,4” X 120” D.A.T. TELESCOPIC

REEVING CYLINDERS (BORE X STROKE)
7” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
N/A

CABLE
7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

HOIST LENGTH
286”

CONTAINER LENGTH
12’ - 24’

OPERATING PRESSURE
2150

HOIST UP
28

HOIST DOWN
23

WINCH ON
28

WINCH OFF
23

SUB-FRAME
4” X 3” X 1/4” TUBE

TOP RAIL DIVIDER BAR
N/A

WEIGHT (WITH OIL AND MOUNTED)
8,290
RATED CAPACITY
75,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
7” X 81” X 4-3/4” D.A.

REEVING CYLINDERS (BORE X STROKE)
7” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
N/A

CABLE
7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

HOIST LENGTH
276”

CONTAINER LENGTH
12’ - 24’

OPERATING PRESSURE
2150

HOIST UP
26

HOIST DOWN
21

WINCH ON
26

WINCH OFF
21

SUB-FRAME
4” X 3” X 1/4” TUBE

TOP RAIL DIVIDER BAR
3/4” x 2-1/2” ALLOY STEEL

WEIGHT (WITH OIL AND MOUNTED)
8,280
RATED CAPACITY
75,000 LBS.

LIFT CYLINDERS (BORE X STROKE X ROD)
7” X 81”X4-3/4” D.A.

REEVING CYLINDERS (BORE X STROKE)
7” X 81” X 4-3/4” D.A.

TAIL CYLINDERS (BORE X STROKE X ROD)
N/A

CABLE
7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

HOIST LENGTH
276”

CONTAINER LENGTH
12’ - 22’

OPERATING PRESSURE
2150

HOIST UP
26

HOIST DOWN
21

WINCH ON
26

WINCH OFF
21

SUB-FRAME
OPTIONAL

TOP RAIL DIVIDER BAR
N/A

WEIGHT (WITH OIL AND MOUNTED)
8,475

Specifications

  • 50,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    6” X 80” X 4-3/4” D.A.

    REEVING CYLINDERS (BORE X STROKE)
    6” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    3-1/2” X 80” X 2-1/2” D.A.

    CABLE
    3-1/2” X 80” X 2-1/2” D.A.

    HOIST LENGTH
    238” - 318”

    CONTAINER LENGTH
    12’ - 22’

    OPERATING PRESSURE
    2150

    HOIST UP
    25

    HOIST DOWN
    13

    WINCH ON
    27

    WINCH OFF
    20

    SUB-FRAME
    4” X 3” X 1/4” TUBE

    TOP RAIL DIVIDER BAR
    N/A

    WEIGHT (WITH OIL AND MOUNTED)
    9,400
  • 60,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    6” X 80” X 4-3/4” D.A.

    REEVING CYLINDERS (BORE X STROKE)
    6” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    N/A

    CABLE
    7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

    HOIST LENGTH
    276”

    CONTAINER LENGTH
    12’ - 24’

    OPERATING PRESSURE
    2150

    HOIST UP
    26

    HOIST DOWN
    17

    WINCH ON
    26

    WINCH OFF
    17

    SUB-FRAME
    4” X 3” X 1/4” TUBE

    TOP RAIL DIVIDER BAR
    N/A

    WEIGHT (WITH OIL AND MOUNTED)
    8,000
  • 60,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    6”, 5”, 4” X 120” D.A.T. TELESCOPIC

    REEVING CYLINDERS (BORE X STROKE)
    6” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    N/A

    CABLE
    7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

    HOIST LENGTH
    286”

    CONTAINER LENGTH
    12’ - 22’

    OPERATING PRESSURE
    2150

    HOIST UP
    29

    HOIST DOWN
    17

    WINCH ON
    29

    WINCH OFF
    17

    SUB-FRAME
    4” X 3” X 1/4” TUBE

    TOP RAIL DIVIDER BAR
    N/A

    WEIGHT (WITH OIL AND MOUNTED)
    8,150
  • 60,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    6” X 81” X 4-3/4”

    REEVING CYLINDERS (BORE X STROKE)
    6” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    N/A

    CABLE
    7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

    HOIST LENGTH
    276”

    CONTAINER LENGTH
    12’ - 22’

    OPERATING PRESSURE
    2150

    HOIST UP
    26

    HOIST DOWN
    17

    WINCH ON
    26

    WINCH OFF
    17

    SUB-FRAME
    4” X 3” X 1/4” TUBE

    TOP RAIL DIVIDER BAR
    3/4” x 2-1/2” ALLOY STEEL

    WEIGHT (WITH OIL AND MOUNTED)
    8,140
  • 75,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    7” X 81” X 4-3/4” D.A.

    REEVING CYLINDERS (BORE X STROKE)
    7” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    N/A

    CABLE
    7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

    HOIST LENGTH
    276”

    CONTAINER LENGTH
    12’ - 22’

    OPERATING PRESSURE
    2150

    HOIST UP
    26

    HOIST DOWN
    21

    WINCH ON
    26

    WINCH OFF
    21

    SUB-FRAME
    4” X 3” X 1/4” TUBE

    TOP RAIL DIVIDER BAR
    N/A

    WEIGHT (WITH OIL AND MOUNTED)
    8,140
  • 75,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    6”,5”,4” X 120” D.A.T. TELESCOPIC

    REEVING CYLINDERS (BORE X STROKE)
    7” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    N/A

    CABLE
    7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

    HOIST LENGTH
    286”

    CONTAINER LENGTH
    12’ - 24’

    OPERATING PRESSURE
    2150

    HOIST UP
    28

    HOIST DOWN
    23

    WINCH ON
    28

    WINCH OFF
    23

    SUB-FRAME
    4” X 3” X 1/4” TUBE

    TOP RAIL DIVIDER BAR
    N/A

    WEIGHT (WITH OIL AND MOUNTED)
    8,290
  • 75,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    7” X 81” X 4-3/4” D.A.

    REEVING CYLINDERS (BORE X STROKE)
    7” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    N/A

    CABLE
    7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

    HOIST LENGTH
    276”

    CONTAINER LENGTH
    12’ - 24’

    OPERATING PRESSURE
    2150

    HOIST UP
    26

    HOIST DOWN
    21

    WINCH ON
    26

    WINCH OFF
    21

    SUB-FRAME
    4” X 3” X 1/4” TUBE

    TOP RAIL DIVIDER BAR
    3/4” x 2-1/2” ALLOY STEEL

    WEIGHT (WITH OIL AND MOUNTED)
    8,280
  • 75,000 LBS.
    LIFT CYLINDERS (BORE X STROKE X ROD)
    7” X 81”X4-3/4” D.A.

    REEVING CYLINDERS (BORE X STROKE)
    7” X 81” X 4-3/4” D.A.

    TAIL CYLINDERS (BORE X STROKE X ROD)
    N/A

    CABLE
    7/8” X 75.9” (6X25 IWRC,EIPS 79,600 LBS.)

    HOIST LENGTH
    276”

    CONTAINER LENGTH
    12’ - 22’

    OPERATING PRESSURE
    2150

    HOIST UP
    26

    HOIST DOWN
    21

    WINCH ON
    26

    WINCH OFF
    21

    SUB-FRAME
    OPTIONAL

    TOP RAIL DIVIDER BAR
    N/A

    WEIGHT (WITH OIL AND MOUNTED)
    8,475
  • 52° Dump Angle
  • Single Stage Interchangeable Cylinders for both Lift and Reeving Cylinders
  • 4” x 3” x 1/4” Sub Frame
  • 1/4” Wear Strips (Outside Rail Only) (60,000 & 75,000 lb. Models)
  • Rear Cable Storage Hook
  • Safety Props Both Sides
  • 1/2” Bracket wrapped around roller pins
  • Back-Up Alarm (Self-Adjusting Volume)
  • Folding Bumper With Lock Pins
  • Certified Rear Hold Downs as required by law
OPTIONS
  • Air Shift P.T.O.
  • Full Fenders
  • Tool Box
  • Inside Controls
  • ADDITIONAL OPTIONS AVAILABLE
