HOISTS

ROLL-OFF HOIST

(HEAVY DUTY OUTSIDE RAIL)

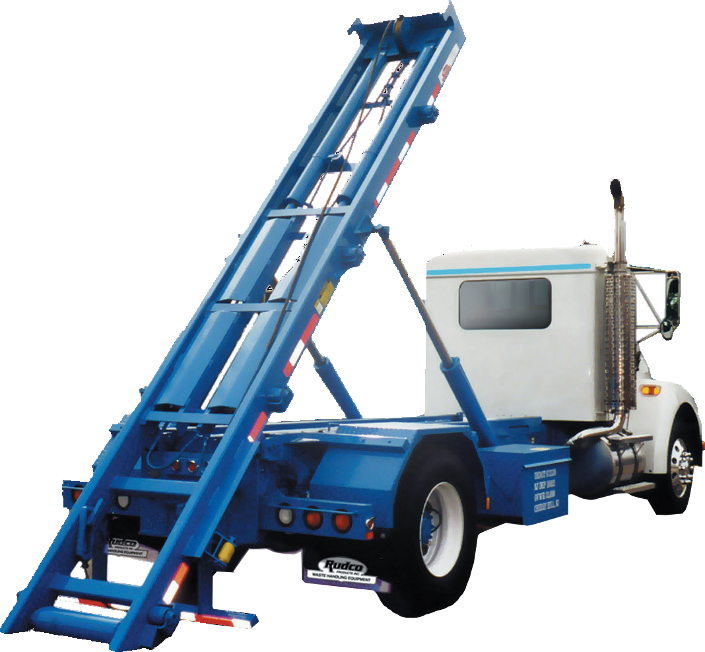

Roll-Off Hoist Heavy Duty

30,000 LB. HEAVY DUTY
Outside Rail Roll-Off

FEATURING:
  • 52° Dump Angle
  • Reeving Cylinders
  • Single Stage Cylinders for both Lift and Reeving Cylinders
  • 3” x 3” x 1/4” Sub Frame
  • 1/4” Wear Strips
  • Outside Controls
  • Rear Cable hook
  • Safety Props both sides
  • 1/2” Bracket wrapped around roller pins
  • Back-up Alarm
  • DOT Bumper
  • Certified Rear Hold Downs as required by law
OPTIONS
  • Air Shift P.T.O
  • Full Diamond Plate Fenders
  • Tool Box
  • Inside Controls (Cable or Air)
Roll-Off Hoist Heavy Duty Wire Profile

Specifications

TILT FRAME
  • Main frame 8” x 3” x 3/8” – 18’ LG., ASTMA 500 grade
  • Front stops 1-1/4” A36 material
  • Eight outside rollers, 4” O.D. C-1026 material with bronze bushings
  • Outside roller shafts 2” C-1018 material removable
  • Outside roller bracket 1/2” x 3” for 3 point support
  • Rear roller 6-1/2” pipe; 2” shaft w/grease fittings
  • Gravity container locks
REEVING AND LIFTING CYLINDERS
  • Reeving cylinder: 5” x 65” tested 3000 PSI, 3” rod single stage cylinders
  • Lifting cylinders: 5” x 55” tested 3000 PSI, 3” rod single stage cylinders
  • 5/16” plate cylinder rod covers
  • C-1018 sheave pins, 1-1/2” diameter, greaseable, removable
  • 3/4” x 6 x 37 IWRC, EIPS, with 1” H: allow swayed button; cable length 65’
  • Breaking strength cable hook cast at 100,000 lbs. pull test
HYDRAULIC SYSTEM
  • 2-1/2” gear type pump
  • 2 spool valve
  • 30 gallon hydraulic oil tank, controls mounted, site gauge
  • 2” tank/pump shutoff ball valve
  • 2” suction line, 1-1/4” return line – wire reinforced
  • Filter w/reliefs return (50 GPM w/200 PSI) replaceable cartridge and pressure gauge
HOIST MOUNTING
  • 3/8” lower hoist mounting plates secured by 3/4” grade 8 bolts
  • Sub-Frame 3” x 3” x 1/4” tubing (one piece)
  • 6” x 6” x 3/4” Angle rear hinge
  • Rear hinge plate 1-1/2” plate 4-1/2” x 4-1/2”
  • Rear hinge pin 2” CRS 1045, greaseable, removable
  • Upper mount body guides fabricated with 1-1/2” pin
  • Short can guide 3/8” x 3” x 4” angle
  • Safety stands both sides
  • Ratcheting rear hold-downs
FENDERS AND LIGHTS
  • Heavy duty bumper with anti-spray mud flaps Meets DOT Requirements
  • Integral rear sealed lights
