CONTAINERS

ROLL-OFF CONTAINERS

Roll-Off-Containers

30 Yard Shown

FEATURING:
  • Lifetime Guarantee on Hook and Hook Plate
  • Rudco Roll-Offs feature tube main rails with solid bullnose
  • All containers are primed and painted in one of ten standard colors
  • Formed front corner posts for added strength
  • Non-Sagging Door is designed to rest on floor of container
  • Large “V” notches in each vertical support column prevents moisture retention
  • Vertical Lift Handle with Semi-Automatic Cam Locking System

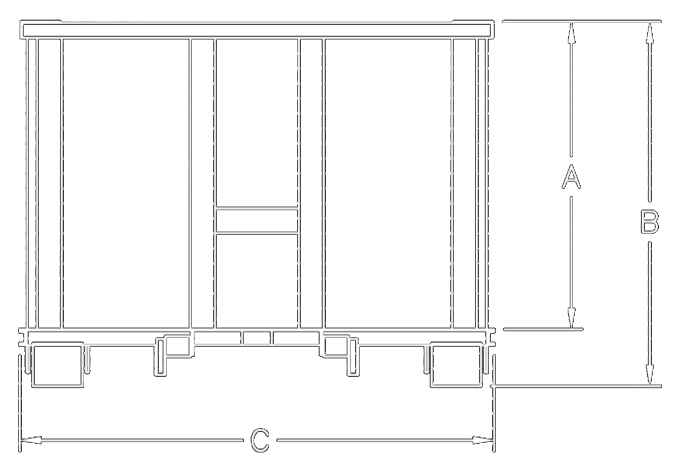

roll-OffWireFrontal

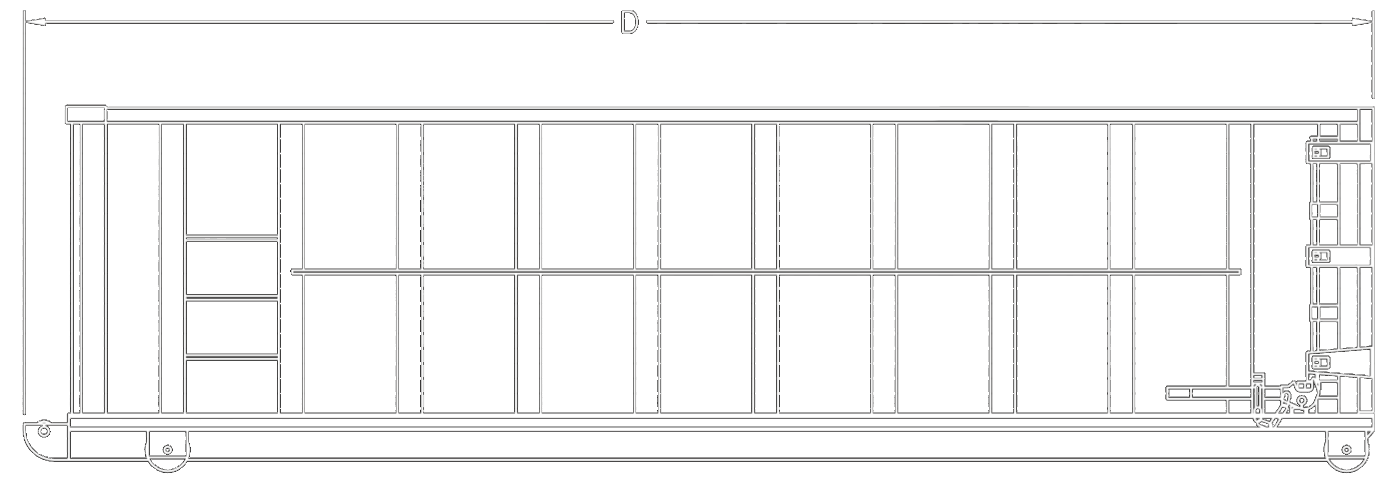

roll-OffWireProfile

Specifications

Size
11 YD

Model
ROT11

(A) Height Inside
43”

(B) Height Outside
55”

(C) Width Overall
96”

(D) Length Overall
12’ 9”

Approx. Weight
3900 LBS.
Size
15 YD

Model
ROT15

(A) Height Inside
43”

(B) Height Outside
55”

(C) Width Overall
96”

(D) Length Overall
16’ 9”

Approx. Weight
4500 LBS.
Size
20 YD

Model
ROT20

(A) Height Inside
43”

(B) Height Outside
55”

(C) Width Overall
96”

(D) Length Overall
22’ 9”

Approx. Weight
5000 LBS.
Size
25 YD

Model
ROT25

(A) Height Inside
52”

(B) Height Outside
64”

(C) Width Overall
96”

(D) Length Overall
22’ 9”

Approx. Weight
5300 LBS.
Size
30 YD

Model
ROT30

(A) Height Inside
62”

(B) Height Outside
74”

(C) Width Overall
96”

(D) Length Overall
22’ 9”

Approx. Weight
5600 LBS.
Size
40 YD

Model
ROT40

(A) Height Inside
84”

(B) Height Outside
96”

(C) Width Overall
96”

(D) Length Overall
22’ 9”

Approx. Weight
7820 LBS
Size
45 YD

Model
ROT45

(A) Height Inside
94”

(B) Height Outside
106”

(C) Width Overall
96”

(D) Length Overall
22’ 9”

Approx. Weight
8200 LBS.
Size
50 YD

Model
ROT50

(A) Height Inside
94”

(B) Height Outside
106”

(C) Width Overall
96”

(D) Length Overall
24’ 9”

Approx. Weight
8900 LBS.

Specifications

  • 11 YD
    Model
    ROT11

    (A) Height Inside
    43”

    (B) Height Outside
    55”

    (C) Width Overall
    96”

    (D) Length Overall
    12’ 9”

    Approx. Weight
    3900 LBS.
  • 15 YD
    Model
    ROT15

    (A) Height Inside
    43”

    (B) Height Outside
    55”

    (C) Width Overall
    96”

    (D) Length Overall
    16’ 9”

    Approx. Weight
    4500 LBS.
  • 20 YD
    Model
    ROT20

    (A) Height Inside
    43”

    (B) Height Outside
    55”

    (C) Width Overall
    96”

    (D) Length Overall
    22’ 9”

    Approx. Weight
    5000 LBS.
  • 25 YD
    Model
    ROT25

    (A) Height Inside
    52”

    (B) Height Outside
    64”

    (C) Width Overall
    96”

    (D) Length Overall
    22’ 9”

    Approx. Weight
    5300 LBS.
  • 30 YD
    Model
    ROT30

    (A) Height Inside
    62”

    (B) Height Outside
    74”

    (C) Width Overall
    96”

    (D) Length Overall
    22’ 9”

    Approx. Weight
    5600 LBS.
  • 40 YD
    Model
    ROT40

    (A) Height Inside
    84”

    (B) Height Outside
    96”

    (C) Width Overall
    96”

    (D) Length Overall
    22’ 9”

    Approx. Weight
    7820 LBS
  • 45 YD
    Model
    ROT45

    (A) Height Inside
    94”

    (B) Height Outside
    106”

    (C) Width Overall
    96”

    (D) Length Overall
    22’ 9”

    Approx. Weight
    8200 LBS.
  • 50 YD
    Model
    ROT50

    (A) Height Inside
    94”

    (B) Height Outside
    106”

    (C) Width Overall
    96”

    (D) Length Overall
    24’ 9”

    Approx. Weight
    8900 LBS.
Standard Deck
  • 3/16” PL. Floor Sheet (1 Piece Optional)
  • 3” Structural Channel on 20” Centers
  • 3/16” PL. Gussets on every other Cross Member
  • 6” x 2” x 3/16” Tube One Piece Main Rail
  • Four 8” diameter x 10” LG. Heavy Duty Wheels
  • 4” OD x 6” LG Front Roller w/1½” Pin and Grease Fitting
  • 1” Certified Hook Plate (w/lifetime guarantee)
  • 1¼” Certified Plate Cable Hook (w/lifetime guarantee)
  • 1½” Plate Solid Bullnose
Front and Sides
  • 11 Ga. Sheet with Tie Down Bar and four Tie Down Hooks
  • 11 Ga. One Piece Formed Dog House
  • 4” x 3” x 11 Ga. Top Tube
  • 11 Ga. 3” x 5” Formed 4-way Bend Side and Front Stiffener Columns on 24” Centers. Columns have notches at bottom to prevent moisture retention
  • 11 Ga. Formed Corner Post wraps around for extra strength and stability with notches at bottom to prevent moisture retention
  • Two Vertical Formed Bulkhead Stiffeners with notches at bottom to prevent moisture retention
Rear Corner Post
  • Latch Side 4″ x 3″ x 11 Ga. Tube
  • Hinge Side 3″ x 8″ x 3/16″ Formed Stiffener 4-way Bend
Rear Door
  • 11 Ga. Sheet w/3” x 4” x 11 Ga. Tube Frame and 3/8” Safety Chain
  • Hinges ½” x 9” x 9” and ½” x 3” x 9” Plates with 2” OD Mechanical Tube Bushings with Grease Fittings and one 3/16” Cold Rolled Pin
  • Non-Sagging Door is designed to rest on the floor of the container
  • Tie Down Hooks
Door Lock
  • Vertical Lift Handle System. Semiautomatic Cam Locking System with cams and Self-Aligning Keeper. The Vertical Lift Handle is securely welded to a cam style for easy operation. Handle is secured by a ¾” solid pin, 180° turn keyway locking system.

NOTE: Recycle Containers can be stacked 5 or 6 per load. This saves freight cost per container. However, when stacking and unstacking, doors have to be removed and re-hung, and the containers may be scratched or dented. We cannot be responsible for this happening since it is unavoidable when stacking containers.
