CONTAINERS

ROLL-OFF COMPACTION CONTAINERS

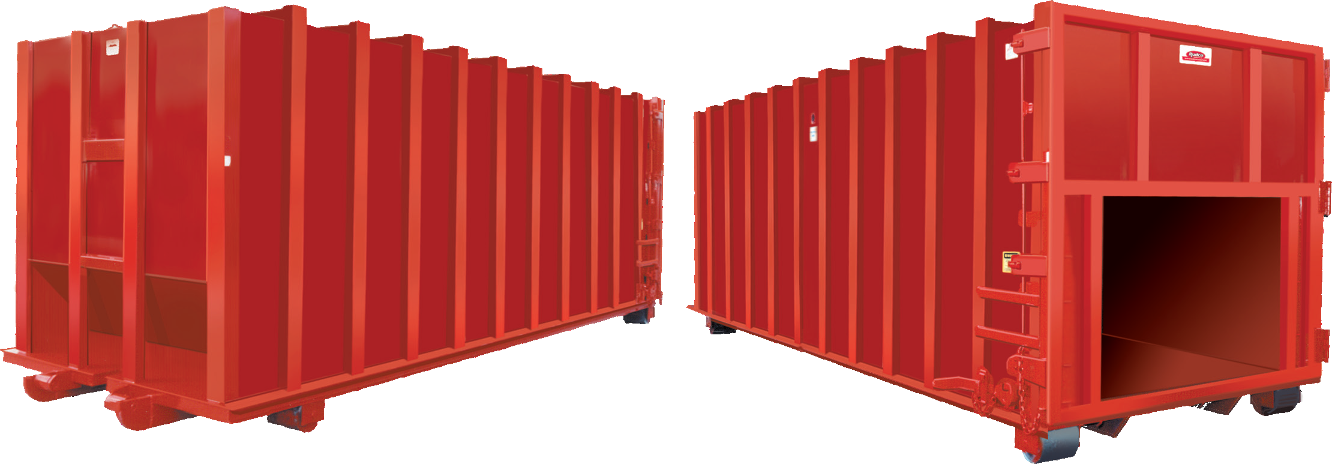

Roll-Off Compaction Containers

40 Yard Shown

FEATURING:
  • Lifetime Guaranteed on Hook and Hook Plate
  • Rudco Roll-Offs feature tube main rails with solid bullnose
  • All containers are primed and painted in one of ten standard colors
  • Vertical Lift Handle with Semi-Automatic Cam Locking System with Self-Aligning Keepers

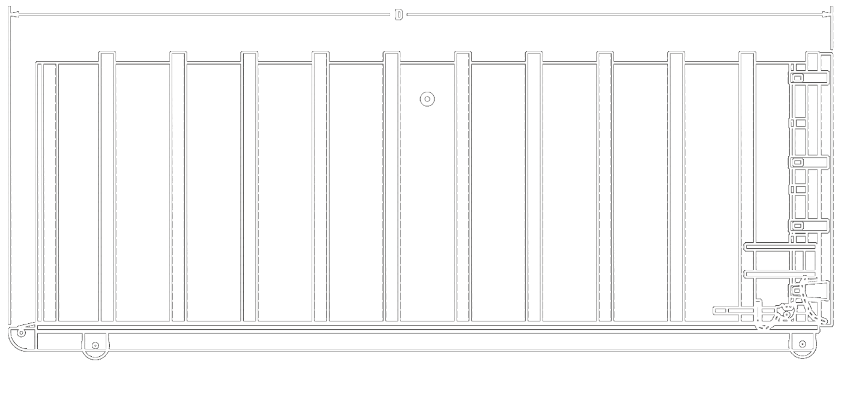

Roll-Off Compaction Containers Wire Profile

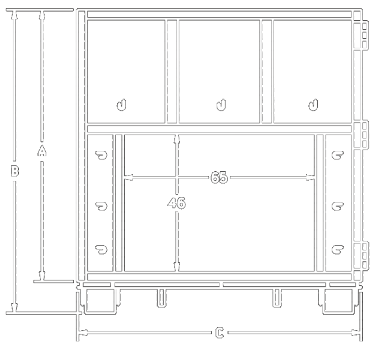

Roll-Off Compaction Containers Wire Frontal

Specifications

SIZE
30 YD

MODEL
RC30

(A) HEIGHT INSIDE
68”

(B) HEIGHT OUTSIDE
84”

(C) WIDTH OVERALL
96”

(D) LENGTH OVERALL
23’ 1”

APPROX. WEIGHT
6900 LBS.
SIZE
40 YD

MODEL
RC40

(A) HEIGHT INSIDE
86”

(B) HEIGHT OUTSIDE
101”

(C) WIDTH OVERALL
96”

(D) LENGTH OVERALL
23’ 1”

APPROX. WEIGHT
7545 LBS.
SIZE
45 YD

MODEL
RC45

(A) HEIGHT INSIDE
86”

(B) HEIGHT OUTSIDE
101”

(C) WIDTH OVERALL
96”

(D) LENGTH OVERALL
25’ 1”

APPROX. WEIGHT
8230 LBS.
SIZE
50 YD NO TAPER

MODEL
RC50

(A) HEIGHT INSIDE
93”

(B) HEIGHT OUTSIDE
108”

(C) WIDTH OVERALL
96”

(D) LENGTH OVERALL
25’ 1”

APPROX. WEIGHT
9870 LBS.

Specifications

  • 30 YD
    MODEL
    RC30

    (A) HEIGHT INSIDE
    68”

    (B) HEIGHT OUTSIDE
    84”

    (C) WIDTH OVERALL
    96”

    (D) LENGTH OVERALL
    23’ 1”

    APPROX. WEIGHT
    6900 LBS.
  • 40 YD
    MODEL
    RC40

    (A) HEIGHT INSIDE
    86”

    (B) HEIGHT OUTSIDE
    101”

    (C) WIDTH OVERALL
    96”

    (D) LENGTH OVERALL
    23’ 1”

    APPROX. WEIGHT
    7545 LBS.
  • 45 YD
    MODEL
    RC45

    (A) HEIGHT INSIDE
    86”

    (B) HEIGHT OUTSIDE
    101”

    (C) WIDTH OVERALL
    96”

    (D) LENGTH OVERALL
    25’ 1”

    APPROX. WEIGHT
    8230 LBS.
  • 50 YD NO TAPER
    MODEL
    RC50

    (A) HEIGHT INSIDE
    93”

    (B) HEIGHT OUTSIDE
    108”

    (C) WIDTH OVERALL
    96”

    (D) LENGTH OVERALL
    25’ 1”

    APPROX. WEIGHT
    9870 LBS.
Standard Deck
  • 3/16” PL. Floor Sheet (1 Piece Optional)
  • 3” Structural Channel on 20” Centers
  • 3/16” PL. Gussets on every other Cross Member
  • 6” x 2” x 3/16” Tube One Piece Main Rail
  • Four 8” diameter x 10” LG. Heavy Duty Wheels
  • 4” OD x 6” LG Front Roller w/1½” Pin and Grease Fitting
  • 1” Certified Hook Plate 6” x 15” (w/lifetime guarantee)
  • 1¼” Certified Plate Cable Hook (w/lifetime guarantee)
  • 1½” Plate Solid Bullnose
FRONT, SIDES AND ROOF
  • 11 Ga. Sheet
  • Two Fire Ports
  • 8” Taper Front to Rear
  • 11 Ga. 3” x 5” Formed 4 way Bend Side and Roof Stiffeners on 24” Centers. Side Stiffeners have notches at bottom to prevent moisture retention
  • 11 Ga. Formed Corner Post wraps around for extra strength and stability with notches at bottom to prevent moisture retention
  • Two Vertical Formed Bulkhead Stiffeners with notches at bottom to prevent moisture retention
Rear Corner Post
  • Latch Side 4” x 3” x 3/16” Tube
  • Hinge Side 4” x 3” x 3/16” Tube
Rear Door
  • 11 Ga. Sheet w/4” x 3” x 11 Ga. Tube Frame and 3/8” Safety Chain
  • Hinges ½” x 7” x 9” and ½” x 3” x 9” Plates with 2” OD Mechanical Tube Bushings with Grease Fittings and 1-3/16” Cold Rolled Pin
  • Compactor Door Opening Hooks 1/2” RB
Door Lock
  • Vertical Lift Handle System. Semiautomatic Cam Locking System with cams and Self-Aligning Keeper. The Vertical Lift Handle is securely welded to a cam style for easy operation. Handle is secured by a ¾” solid pin, 180° turn keyway locking system.

NOTE: Recycle Containers can be stacked 5 or 6 per load. This saves freight cost per container. However, when stacking and unstacking, doors have to be removed and re-hung, and the containers may be scratched or dented. We cannot be responsible for this happening since it is unavoidable when stacking containers.
