CONTAINERS

REAR LOAD CONTAINERS

Rear-Load-Containers

8 Yard Shown

FEATURING:
  • High Strength Plastic Lids
  • Solid Pick up bar
  • Meets or exceeds ANSI Standards
  • Full swing-away lids
  • Full length channels across bottom reinforce container
  • Reinforced rear overhead hook
  • Inside/Outside thrust bar provides double strength to rear panel
  • All containers are primed and painted in one of ten standard colors

Specifications

2YD RL
LIDS
SINGLE WALL PLASTIC

LID FRAME
NA

HINGE ROD
1/2” ROUND BAR W/ WASHER AND COTTER PIN

DOORS
NA

DOOR TRACKS
NA

BUMPERS
10 GA. FORMED

PICK UP BAR
1-1/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

FRONT, BACK, SIDES
14 GA.

BOTTOMS
14 GA.

SIDE CHANNELS
10 GA. FORMED INTERLOCKING CHANNEL

LIFTING HANDLES
3/4” FORMED ROUND BAR

BACK CHANNELS
3” CHANNEL

REAR LIFTING HOOK
LOCATED AT REAR/BOTTOM

BOTTOM CHANNELS
10 GA. FORMED CHANNEL

DRAIN PLUG
1” NPT PLASTIC

CASTER PADS
OPTIONAL*

CASTERS SWIVEL & RIGID
OPTIONAL*

APPROX. WEIGHT
375

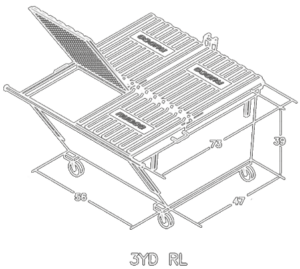

3YD RL
LIDS
SINGLE WALL PLASTIC

LID FRAME
SWING-AWAY TYPE

HINGE ROD
1/2” ROUND BAR W/ WASHER AND COTTER PIN

DOORS
NA

DOOR TRACKS
NA

BUMPERS
10 GA. FORMED

PICK UP BAR
1-1/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

FRONT, BACK, SIDES
14 GA.

BOTTOMS
14 GA.

SIDE CHANNELS
10 GA. FORMED INTERLOCKING CHANNEL

LIFTING HANDLES
3/4” FORMED ROUND BAR

BACK CHANNELS
3” CHANNEL

REAR LIFTING HOOK
LOCATED ON REAR CHANNEL

BOTTOM CHANNELS
10 GA. FORMED CHANNEL

DRAIN PLUG
1” NPT PLASTIC

CASTER PADS
OPTIONAL*

CASTERS SWIVEL & RIGID
OPTIONAL*

APPROX. WEIGHT
480

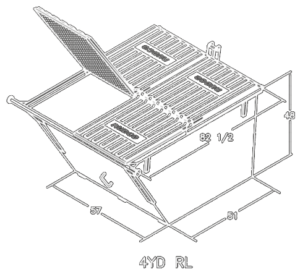

4YD RL
LIDS
SINGLE WALL PLASTIC

LID FRAME
SWING-AWAY TYPE

HINGE ROD
1/2” ROUND BAR W/ WASHER AND COTTER PIN

DOORS
NA

DOOR TRACKS
NA

BUMPERS
10 GA. FORMED

PICK UP BAR
1-3/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

FRONT, BACK, SIDES
12 GA.

BOTTOMS
12 GA.

SIDE CHANNELS
3” CHANNEL

LIFTING HANDLES
NA

BACK CHANNELS
3” CHANNEL

REAR LIFTING HOOK
LOCATED ON REAR CHANNEL

BOTTOM CHANNELS
10 GA. FORMED CHANNEL

DRAIN PLUG
1” NPT PLASTIC

CASTER PADS
NA

CASTERS SWIVEL & RIGID
NA

APPROX. WEIGHT
735

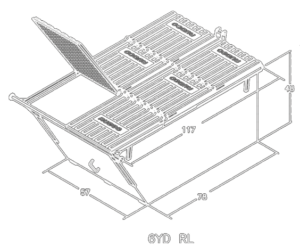

6YD RL
LIDS
SINGLE WALL PLASTIC

LID FRAME
SWING-AWAY TYPE

HINGE ROD
1/2” ROUND BAR W/ WASHER AND COTTER PIN

DOORS
NA

DOOR TRACKS
NA

BUMPERS
10 GA. FORMED

PICK UP BAR
1-3/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

FRONT, BACK, SIDES
12 GA.

BOTTOMS
12 GA.

SIDE CHANNELS
3” CHANNEL

LIFTING HANDLES
NA

BACK CHANNELS
3” CHANNEL

REAR LIFTING HOOK
LOCATED ON REAR CHANNEL

BOTTOM CHANNELS
10 GA. FORMED CHANNEL

DRAIN PLUG
1” NPT PLASTIC

CASTER PADS
NA

CASTERS SWIVEL & RIGID
NA

APPROX. WEIGHT
990

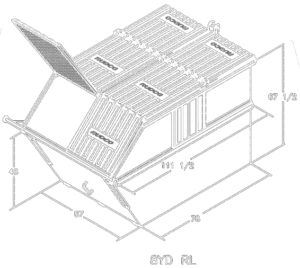

8YD RL
LIDS
SINGLE WALL PLASTIC

LID FRAME
SWING-AWAY TYPE

HINGE ROD
1/2” ROUND BAR W/ WASHER AND COTTER PIN

DOORS
METAL 30” X 30”

DOOR TRACKS
12 GA. FORMED U-CHANNEL W/ SAFETY EDGE

BUMPERS
10 GA. FORMED

PICK UP BAR
1-3/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

FRONT, BACK, SIDES
12 GA.

BOTTOMS
12 GA.

SIDE CHANNELS
3” CHANNEL

LIFTING HANDLES
NA

BACK CHANNELS
3” CHANNEL

REAR LIFTING HOOK
LOCATED ON REAR CHANNEL

BOTTOM CHANNELS
3” CHANNEL

DRAIN PLUG
1” NPT PLASTIC

CASTER PADS
NA

CASTERS SWIVEL & RIGID
NA

APPROX. WEIGHT
1332

Specifications

  • 2RL
    2YD RL

    LIDS
    SINGLE WALL PLASTIC

    LID FRAME
    NA

    HINGE ROD
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    DOORS
    NA

    DOOR TRACKS
    NA

    BUMPERS
    10 GA. FORMED

    PICK UP BAR
    1-1/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

    FRONT, BACK, SIDES
    14 GA.

    BOTTOMS
    14 GA.

    SIDE CHANNELS
    10 GA. FORMED INTERLOCKING CHANNEL

    LIFTING HANDLES
    3/4” FORMED ROUND BAR

    BACK CHANNELS
    3” CHANNEL

    REAR LIFTING HOOK
    LOCATED AT REAR/BOTTOM

    BOTTOM CHANNELS
    10 GA. FORMED CHANNEL

    DRAIN PLUG
    1” NPT PLASTIC

    CASTER PADS
    OPTIONAL*

    CASTERS SWIVEL & RIGID
    OPTIONAL*

    APPROX. WEIGHT
    375
  • 3RL
    3YD RL

    LIDS
    SINGLE WALL PLASTIC

    LID FRAME
    SWING-AWAY TYPE

    HINGE ROD
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    DOORS
    NA

    DOOR TRACKS
    NA

    BUMPERS
    10 GA. FORMED

    PICK UP BAR
    1-1/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

    FRONT, BACK, SIDES
    14 GA.

    BOTTOMS
    14 GA.

    SIDE CHANNELS
    10 GA. FORMED INTERLOCKING CHANNEL

    LIFTING HANDLES
    3/4” FORMED ROUND BAR

    BACK CHANNELS
    3” CHANNEL

    REAR LIFTING HOOK
    LOCATED ON REAR CHANNEL

    BOTTOM CHANNELS
    10 GA. FORMED CHANNEL

    DRAIN PLUG
    1” NPT PLASTIC

    CASTER PADS
    OPTIONAL*

    CASTERS SWIVEL & RIGID
    OPTIONAL*

    APPROX. WEIGHT
    480
  • 4RL
    4YD RL

    LIDS
    SINGLE WALL PLASTIC

    LID FRAME
    SWING-AWAY TYPE

    HINGE ROD
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    DOORS
    NA

    DOOR TRACKS
    NA

    BUMPERS
    10 GA. FORMED

    PICK UP BAR
    1-3/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

    FRONT, BACK, SIDES
    12 GA.

    BOTTOMS
    12 GA.

    SIDE CHANNELS
    3” CHANNEL

    LIFTING HANDLES
    NA

    BACK CHANNELS
    3” CHANNEL

    REAR LIFTING HOOK
    LOCATED ON REAR CHANNEL

    BOTTOM CHANNELS
    10 GA. FORMED CHANNEL

    DRAIN PLUG
    1” NPT PLASTIC

    CASTER PADS
    NA

    CASTERS SWIVEL & RIGID
    NA

    APPROX. WEIGHT
    735
  • 6RL
    6YD RL

    LIDS
    SINGLE WALL PLASTIC

    LID FRAME
    SWING-AWAY TYPE

    HINGE ROD
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    DOORS
    NA

    DOOR TRACKS
    NA

    BUMPERS
    10 GA. FORMED

    PICK UP BAR
    1-3/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

    FRONT, BACK, SIDES
    12 GA.

    BOTTOMS
    12 GA.

    SIDE CHANNELS
    3” CHANNEL

    LIFTING HANDLES
    NA

    BACK CHANNELS
    3” CHANNEL

    REAR LIFTING HOOK
    LOCATED ON REAR CHANNEL

    BOTTOM CHANNELS
    10 GA. FORMED CHANNEL

    DRAIN PLUG
    1” NPT PLASTIC

    CASTER PADS
    NA

    CASTERS SWIVEL & RIGID
    NA

    APPROX. WEIGHT
    990
  • 8RL
    8YD RL

    LIDS
    SINGLE WALL PLASTIC

    LID FRAME
    SWING-AWAY TYPE

    HINGE ROD
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    DOORS
    METAL 30” X 30”

    DOOR TRACKS
    12 GA. FORMED U-CHANNEL W/ SAFETY EDGE

    BUMPERS
    10 GA. FORMED

    PICK UP BAR
    1-3/4” ROUND BAR 77-1/2” W/ 7 GA. SUPPORT GUSSETS

    FRONT, BACK, SIDES
    12 GA.

    BOTTOMS
    12 GA.

    SIDE CHANNELS
    3” CHANNEL

    LIFTING HANDLES
    NA

    BACK CHANNELS
    3” CHANNEL

    REAR LIFTING HOOK
    LOCATED ON REAR CHANNEL

    BOTTOM CHANNELS
    3” CHANNEL

    DRAIN PLUG
    1” NPT PLASTIC

    CASTER PADS
    NA

    CASTERS SWIVEL & RIGID
    NA

    APPROX. WEIGHT
    1332
