Containers

HD FRONT LOADING CONTAINERS

Front-Load-Containers

8 Yard Shown

FEATURING:
  • “V” Bends formed on both front and back for added strength
  • Tapered back to reduce lid damage. 6 and 8 yd with side doors only
  • All containers are primed and painted in one of ten standard colors
  • Meets or exceeds ANSI Standards

Specifications

outline-fl-2yd
Component
2YD FL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
NA

Door Tracks
NA

Door Opening Front Bumpers
NA

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

Front Back And Sides
12 GA.

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Drain Plug
1” NPT PLASTIC

Caster Pads
OPTIONAL***

Casters Swivel And Rigid
OPTIONAL***

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
NA

Weight
450
outline-fl-3yd
Component
3 YD FL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
NA

Door Tracks
NA

Door Opening Front Bumpers
NA

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

Front Back And Sides
12 GA.

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Drain Plug
1” NPT PLASTIC

Caster Pads
OPTIONAL***

Casters Swivel And Rigid
OPTIONAL***

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
NA

Weight
650
outline-fl-4yd
Component
4 YD FL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
NA

Door Tracks
NA

Door Opening Front Bumpers
NA

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

Front Back And Sides
12 GA. W/ V-BENDS FOR EXTRA STRENGTH

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Drain Plug
1” NPT PLASTIC

Caster Pads
OPTIONAL***

Casters Swivel And Rigid
OPTIONAL***

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
OPTIONAL (LOCATED ON FRONT)

Weight
680
outline-fl-6yd
Component
6 YD FL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
SINGLE WALL PLASTIC OR METAL 30” X 30” (2)**

Door Tracks
12 GA FORMED U-CHANNEL W/ SAFETY EDGE

Door Opening Front Bumpers
7 GA. 2” X 2” FOR EXTRA STRENGTH

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOT- TOM COVER GUSSETS

Front Back And Sides
12 GA. W/ V-BENDS FOR EXTRA STRENGTH

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Drain Plug
1” NPT PLASTIC

Caster Pads
NA

Casters Swivel And Rigid
NA

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

Weight
995

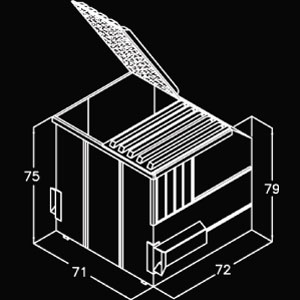

outline-fl-8yd
Component
8 YD FL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
SINGLE WALL PLASTIC OR METAL 30” X 30” (2)**

Door Tracks
12 GA FORMED U-CHANNEL W/ SAFETY EDGE

Door Opening Front Bumpers
7 GA. 2” X 2” FOR EXTRA STRENGTH

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

Front Back And Sides
12 GA. W/ V-BENDS FOR EXTRA STRENGTH

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

Drain Plug
1” NPT PLASTIC

Caster Pads
NA

Casters Swivel And Rigid
NA

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

Weight
1125
outline-fl-6yd-sl
Component
6 YD FL SL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
NA

Door Tracks
NA

Door Opening Front Bumpers
NA

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

Front Back And Sides
12 GA. W/ V-BENDS FOR EXTRA STRENGTH

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

Drain Plug
1” NPT PLASTIC

Caster Pads
NA

Casters Swivel And Rigid
NA

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

Weight
900
outline-fl-8yd-sl
Component
8 YD FL SL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
NA

Door Tracks
NA

Door Opening Front Bumpers
NA

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

Front Back And Sides
12 GA. W/ V-BENDS FOR EXTRA STRENGTH

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

Drain Plug
1” NPT PLASTIC

Caster Pads
NA

Casters Swivel And Rigid
NA

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

Weight
1000
outline-fl-10yd
Component
10 YD FL

Lids
SINGLE OR DOUBLE WALL PLASTIC*

Hinge Rod
1/2” ROUND BAR W/ WASHER AND COTTER PIN

Doors
SINGLE WALL PLASTIC OR METAL 30” X 30” (2)**

Door Tracks
12 GA FORMED U-CHANNEL W/ SAFETY EDGE

Door Opening Front Bumpers
7 GA. 2” X 2” FOR EXTRA STRENGTH

Bumpers
3/16” PLATE FORMED

Pick Up Pockets
3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

Front Back And Sides
12 GA. W/ V-BENDS FOR EXTRA STRENGTH

Front And Side Channels
11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

Back Channels
7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

Drain Plug
1” NPT PLASTIC

Caster Pads
NA

Casters Swivel And Rigid
NA

Automatic Lid Locks
OPTIONAL***

Manual Lid Locks
OPTIONAL***

Recycling Cardboard Slots
OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

Weight
1275

Specifications

  • 2YD FL
    outline-fl-2yd
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    NA

    Door Tracks
    NA

    Door Opening Front Bumpers
    NA

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

    Front Back And Sides
    12 GA.

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    OPTIONAL***

    Casters Swivel And Rigid
    OPTIONAL***

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    NA

    Weight
    450
  • 3 YD FL
    outline-fl-3yd
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    NA

    Door Tracks
    NA

    Door Opening Front Bumpers
    NA

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

    Front Back And Sides
    12 GA.

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    OPTIONAL***

    Casters Swivel And Rigid
    OPTIONAL***

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    NA

    Weight
    650
  • 4 YD FL
    outline-fl-4yd
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    NA

    Door Tracks
    NA

    Door Opening Front Bumpers
    NA

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

    Front Back And Sides
    12 GA. W/ V-BENDS FOR EXTRA STRENGTH

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    OPTIONAL***

    Casters Swivel And Rigid
    OPTIONAL***

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    OPTIONAL (LOCATED ON FRONT)

    Weight
    680
  • 6 YD FL
    outline-fl-6yd
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    SINGLE WALL PLASTIC OR METAL 30” X 30” (2)**

    Door Tracks
    12 GA FORMED U-CHANNEL W/ SAFETY EDGE

    Door Opening Front Bumpers
    7 GA. 2” X 2” FOR EXTRA STRENGTH

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOT- TOM COVER GUSSETS

    Front Back And Sides
    12 GA. W/ V-BENDS FOR EXTRA STRENGTH

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    NA

    Casters Swivel And Rigid
    NA

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

    Weight
    995
  • 8 YD FL
    outline-fl-8yd
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    SINGLE WALL PLASTIC OR METAL 30” X 30” (2)**

    Door Tracks
    12 GA FORMED U-CHANNEL W/ SAFETY EDGE

    Door Opening Front Bumpers
    7 GA. 2” X 2” FOR EXTRA STRENGTH

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

    Front Back And Sides
    12 GA. W/ V-BENDS FOR EXTRA STRENGTH

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    NA

    Casters Swivel And Rigid
    NA

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

    Weight
    1125
  • 6 YD FL SL
    outline-fl-6yd-sl
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    NA

    Door Tracks
    NA

    Door Opening Front Bumpers
    NA

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

    Front Back And Sides
    12 GA. W/ V-BENDS FOR EXTRA STRENGTH

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    NA

    Casters Swivel And Rigid
    NA

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

    Weight
    900
  • 8 YD FL SL
    outline-fl-8yd-sl
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    NA

    Door Tracks
    NA

    Door Opening Front Bumpers
    NA

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

    Front Back And Sides
    12 GA. W/ V-BENDS FOR EXTRA STRENGTH

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    NA

    Casters Swivel And Rigid
    NA

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

    Weight
    1000
  • 10 YD FL
    outline-fl-10yd
    Lids
    SINGLE OR DOUBLE WALL PLASTIC*

    Hinge Rod
    1/2” ROUND BAR W/ WASHER AND COTTER PIN

    Doors
    SINGLE WALL PLASTIC OR METAL 30” X 30” (2)**

    Door Tracks
    12 GA FORMED U-CHANNEL W/ SAFETY EDGE

    Door Opening Front Bumpers
    7 GA. 2” X 2” FOR EXTRA STRENGTH

    Bumpers
    3/16” PLATE FORMED

    Pick Up Pockets
    3/16” PLATE FORMED 30” LONG W/ 10 GA. FULL TOP AND BOTTOM COVER GUSSETS

    Front Back And Sides
    12 GA. W/ V-BENDS FOR EXTRA STRENGTH

    Front And Side Channels
    11 GA. 1.5” X 2.5” FORMED INTERLOCKING CHANNEL

    Back Channels
    7 GA. 3” X 3” FORMED INTERLOCKING ANGLE

    Drain Plug
    1” NPT PLASTIC

    Caster Pads
    NA

    Casters Swivel And Rigid
    NA

    Automatic Lid Locks
    OPTIONAL***

    Manual Lid Locks
    OPTIONAL***

    Recycling Cardboard Slots
    OPTIONAL (LOCATED ON FRONT INCLUDING METAL DOORS AND LOCKING TABS

    Weight
    1275
