Compactors

Stationary-Compactor

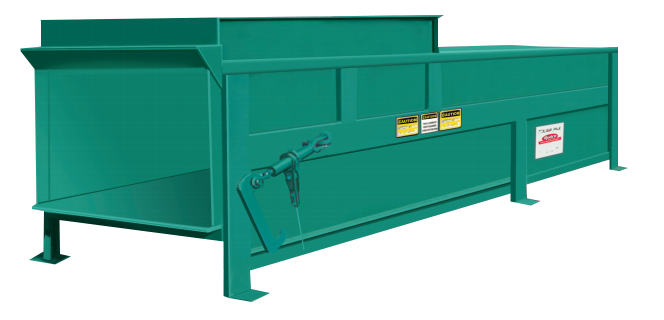

RP-550 SHOWN

FEATURING:

  • INDUSTRIAL RUDCO® Compactors are ideal for general industrial applications where large volumes of solid waste are generated. They are ruggedly built and are equipped with a large hydraulic power unit to achieve maximum compaction. They have an oversized clear top opening for ease of loading. The Hopper is in excess of 5 to 7 cubic yards with a fast cycle time
  • TRANSFER RUDCO® Compactors are specifically designed to accommodate both residential and commercial collection vehicles and serve most capably in Transfer Station applications for municipalities and private contractors. Significant savings and time costs can be achieved through the use of a conveniently located Transfer Facility.

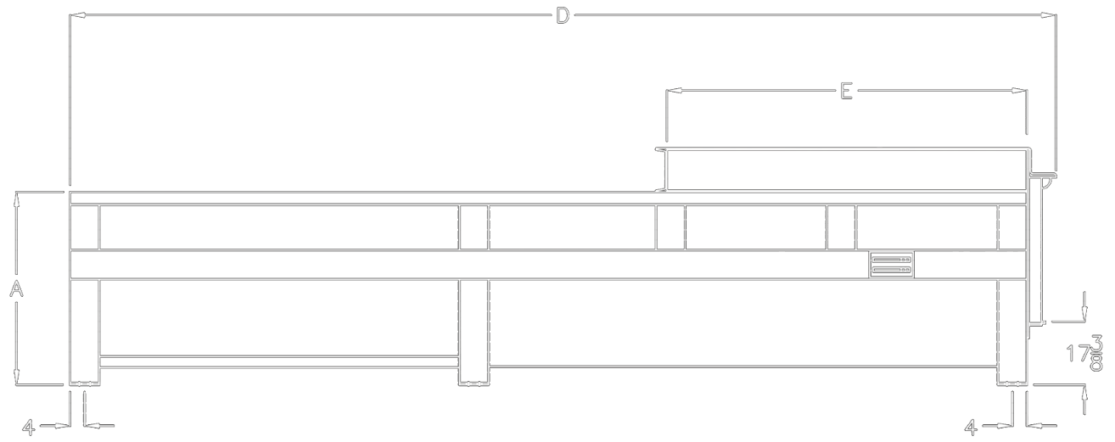

Compactors Wire Profile

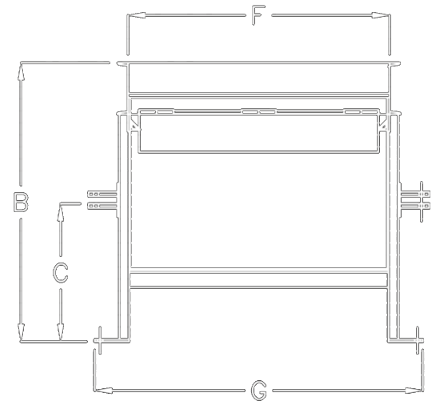

Compactors Wire Frontal

Specifications

COMPONENT
RP-550

MFG. RATING
6.06 CUBIC YDS.

NSWMA RATING
4.12 CUBIC YDS.

CYCLE TIME
65 SEC.

NORMAL RAM FORCE
77,000

MAXIMUM RAM FORCE
88,500

NORMAL OPERATING PRESSURE
2000

MAXIMUM OPERATING PRESSURE
2300

CYLINDER (Bore x Stroke x Rod)
7” X 120” X 4”

MOTOR
20 HP

PUMP SIZE
18 GPM w/REGEN

PACKER FLOOR
1/2” PLATE

PACKER SIDES
1/4” PLATE w/6” CHANNEL

RAM TOP
3/8” PLATE

RAM FACE
1/2” PLATE w/4x3” ANGLE

CHARGE BOX OPENING
99 x 60

DIMENSION - A
53”

DIMENSION - B
65”

DIMENSION - C
31”

DIMENSION - D
271”

DIMENSION - E
99”

DIMENSION - F
60”

DIMENSION - G
76-1/2”

APPROXIMATE WEIGHT
14,030
COMPONENT
RP-750

MFG. RATING
7.28 CUBIC YDS.

NSWMA RATING
4.95 CUBIC YDS.

CYCLE TIME
65 SEC.

NORMAL RAM FORCE
77,000

MAXIMUM RAM FORCE
88,500

NORMAL OPERATING PRESSURE
2000

MAXIMUM OPERATING PRESSURE
2300

CYLINDER (Bore x Stroke x Rod)
7” x 120” x 4”

MOTOR
20 HP

PUMP SIZE
18 GPM w/REGEN

PACKER FLOOR
1/2” PLATE

PACKER SIDES
1/4” PLATE w/6” CHANNEL

RAM TOP
3/8” PLATE

RAM FACE
1/2” PLATE w/4”x3” ANGLE

CHARGE BOX OPENING
99 x 72

DIMENSION - A
53”

DIMENSION - B
65”

DIMENSION - C
31”

DIMENSION - D
271”

DIMENSION - E
99”

DIMENSION - F
72”

DIMENSION - G
88-1/2”

APPROXIMATE WEIGHT
15,810

Specifications

  • RP-550
    MFG. RATING
    6.06 CUBIC YDS.

    NSWMA RATING
    4.12 CUBIC YDS.

    CYCLE TIME
    65 SEC.

    NORMAL RAM FORCE
    77,000

    MAXIMUM RAM FORCE
    88,500

    NORMAL OPERATING PRESSURE
    2000

    MAXIMUM OPERATING PRESSURE
    2300

    CYLINDER (Bore x Stroke x Rod)
    7” X 120” X 4”

    MOTOR
    20 HP

    PUMP SIZE
    18 GPM w/REGEN

    PACKER FLOOR
    1/2” PLATE

    PACKER SIDES
    1/4” PLATE w/6” CHANNEL

    RAM TOP
    3/8” PLATE

    RAM FACE
    1/2” PLATE w/4x3” ANGLE

    CHARGE BOX OPENING
    99 x 60

    DIMENSION - A
    53”

    DIMENSION - B
    65”

    DIMENSION - C
    31”

    DIMENSION - D
    271”

    DIMENSION - E
    99”

    DIMENSION - F
    60”

    DIMENSION - G
    76-1/2”

    APPROXIMATE WEIGHT
    14,030
  • RP-750
    MFG. RATING
    7.28 CUBIC YDS.

    NSWMA RATING
    4.95 CUBIC YDS.

    CYCLE TIME
    65 SEC.

    NORMAL RAM FORCE
    77,000

    MAXIMUM RAM FORCE
    88,500

    NORMAL OPERATING PRESSURE
    2000

    MAXIMUM OPERATING PRESSURE
    2300

    CYLINDER (Bore x Stroke x Rod)
    7” x 120” x 4”

    MOTOR
    20 HP

    PUMP SIZE
    18 GPM w/REGEN

    PACKER FLOOR
    1/2” PLATE

    PACKER SIDES
    1/4” PLATE w/6” CHANNEL

    RAM TOP
    3/8” PLATE

    RAM FACE
    1/2” PLATE w/4”x3” ANGLE

    CHARGE BOX OPENING
    99 x 72

    DIMENSION - A
    53”

    DIMENSION - B
    65”

    DIMENSION - C
    31”

    DIMENSION - D
    271”

    DIMENSION - E
    99”

    DIMENSION - F
    72”

    DIMENSION - G
    88-1/2”

    APPROXIMATE WEIGHT
    15,810
  • External Power Unit 20 H.P. Motor 230/460 Volt, 3 Phase
  • Push Button Operating Controls in Remote Pendant with 15’ Sealtite
  • Container Full Light (80% Full Light Optional)
  • Ram Penetration 20”
  • U.L. Listed Control Panel
  • Over – Ride Pack Out – Hydraulic Pressure Boost
  • Extra Cylinder Support for Longer Cylinder Life
  • Dual Cylinder Models (Optional)
